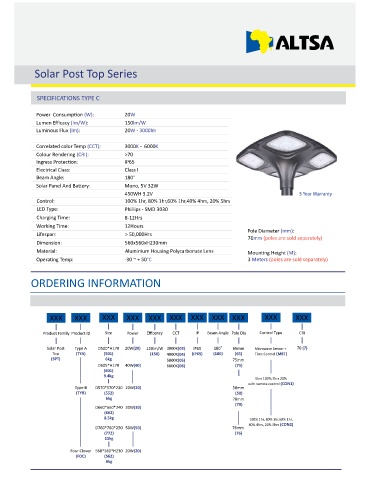

Page 401 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Solar Post Top Series

SPECIFICATIONS TYPE C

Power Consump on (W): 20W
Lumen Efficacy (lm/W): 150lm/W
Luminous Flux (lm): 20W - 3000lm

Correlated color Temp (CCT): 3000K - 6000K
Colour Rendering (CRI): >70
Ingress Protec on: IP65
Electrical Class: Class I
Beam Angle: 180°
Solar Panel And Ba ery: Mono, 5V 32W
450WH 3.2V 3 Year Warranty
Control: 100% 1hr, 80% 1hr,60% 1hr,40% 4hrs, 20% 5hrs
LED Type: Phillips - SMD 3030
Charging Time: 8-12Hrs
Working Time: 12Hours
Lifespan: > 50,000Hrs Pole Diameter (mm):
76mm (poles are sold separately)
Dimension: 560x560xH230mm
Material: Aluminium Housing Polycarbonate Lens Moun ng Height (M):
Opera ng Temp: -30 ~ + 50°C 3 Meters (poles are sold separately)

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size Power Efficency CCT IP Beam Angle Pole Dia Control Type CRI

Solar Post Type A D500*H170 20W(20) 150lm/W 3000K(03) IP65 180° 65mm Microwave Sensor + 70 (7)
Top (TYA) (501) (150) 4000K(04) (IP65) (180) (65) Time Control (MST)
(SPT) 6kg 5000K(05) 75mm
D605*H170 40W(40) 6000K(06) (75)
(601)
9.4kg
5hrs 100%,7hrs 20%
with remote control (CON1)
Type B D570*570*230 20W(20) 50mm
(TYB) (552) (50)
6kg 70mm
(70)
D660*660*240 30W(30)
(662)
8.5kg 100% 1hr, 80% 1hr,60% 1hr,
40% 4hrs, 20% 5hrs (CON2)
D760*760*250 50W(50) 76mm
(772) (76)
11kg
Four Clover 560*560*H230 20W(20)
(FOC) (562)
6kg
