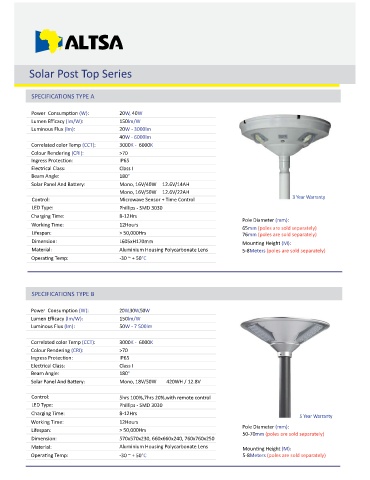

Page 400 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Solar Post Top Series

SPECIFICATIONS TYPE A

Power Consump on (W): 20W, 40W
Lumen Efficacy (lm/W): 150lm/W
Luminous Flux (lm): 20W - 3000lm
40W - 6000lm
Correlated color Temp (CCT): 3000K - 6000K
Colour Rendering (CRI): >70
Ingress Protec on: IP65
Electrical Class: Class I
Beam Angle: 180°
Solar Panel And Ba ery: Mono, 16V/40W 12.6V/14AH
Mono, 16V/50W 12.6V/22AH
Control: Microwave Sensor + Time Control 3 Year Warranty
LED Type: Phillips - SMD 3030
Charging Time: 8-12Hrs
Pole Diameter (mm):
Working Time: 12Hours 65mm (poles are sold separately)
Lifespan: > 50,000Hrs 76mm (poles are sold separately)
Dimension: L605xH170mm Moun ng Height (M):
Material: Aluminium Housing Polycarbonate Lens 5-8Meters (poles are sold separately)
Opera ng Temp: -30 ~ + 50°C

SPECIFICATIONS TYPE B

Power Consump on (W): 20W,30W,50W
Lumen Efficacy (lm/W): 150lm/W
Luminous Flux (lm): 50W - 7 500lm

Correlated color Temp (CCT): 3000K - 6000K
Colour Rendering (CRI): >70
Ingress Protec on: IP65
Electrical Class: Class I
Beam Angle: 180°
Solar Panel And Ba ery: Mono, 18V/50W 420WH / 12.8V

Control: 5hrs 100%,7hrs 20%,with remote control
LED Type: Phillips - SMD 3030
Charging Time: 8-12Hrs
5 Year Warranty
Working Time: 12Hours
Lifespan: > 50,000Hrs Pole Diameter (mm):
50-70mm (poles are sold separately)
Dimension: 570x570x230, 660x660x240, 760x760x250
Material: Aluminium Housing Polycarbonate Lens Moun ng Height (M):
Opera ng Temp: -30 ~ + 50°C 5-8Meters (poles are sold separately)
