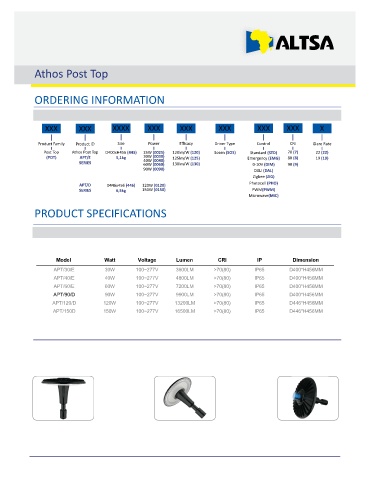

Page 398 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Athos Post Top

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate
Post Top Athos Post Top D400xH456 (445) 25W (0025) 120lm/W (120) Sosen (SOS) Standard (STD) 70 (7) 22 (22)
(POT) APT/E 5,1kg 30W (0030) 125lm/W (125) Emergency (EMG) 80 (8) 19 (19)
SERIES 40W (0040) 130lm/W (130) 0-10V (DIM) 90 (9)
60W (0060)
90W (0090) DALI (DAL)
Zigbee (ZIG)
Photocell (PHO)
APT/D D446x456 (446) 120W (0120)
SERIES 6,5kg 150W (0150) PWM(PWM)
Microwave(MIC)
PRODUCT SPECIFICATIONS

Model Watt Voltage Lumen CRI IP Dimension
APT/30/E 30W 100~277V 3600LM >70(80) IP65 D400*H456MM
APT/40/E 40W 100~277V 4800LM >70(80) IP65 D400*H456MM
APT/60/E 60W 100~277V 7200LM >70(80) IP65 D400*H456MM
APT/90/D 90W 100~277V 9900LM >70(80) IP65 D400*H456MM
APT/120/D 120W 100~277V 13200LM >70(80) IP65 D446*H456MM
APT/150D 150W 100~277V 16500LM >70(80) IP65 D446*H456MM
