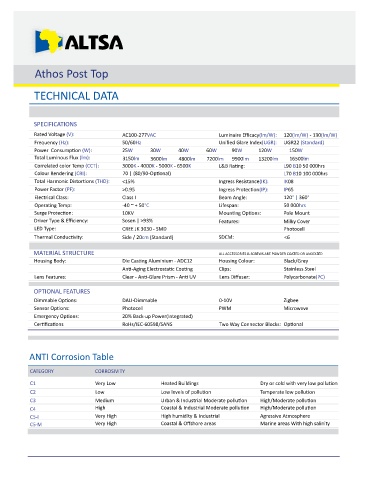

Athos Post Top

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277VAC Luminaire Efficacy(lm/W): 120(lm/W) - 130(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 (Standard)
Power Consump on (W): 25W 30W 40W 60W 90W 120W 150W
Total Luminous Flux (lm): 3150lm 3600lm 4800lm 7200lm 9900lm 13200lm 16500lm
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6500K L&B Ra ng: L90 B10 50 000hrs
Colour Rendering (CRI): 70 | (80/90-Op onal) L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Resistance(IK): IK08
Power Factor (PF): >0.95 Ingress Protec on(IP): IP65
Electrical Class: Class I Beam Angle: 120° | 360°
Opera ng Temp: -40 ~ + 50°C Lifespan: 50 000hrs
Surge Protec on: 10KV Moun ng Op ons: Pole Mount
Driver Type & Efficiency: Sosen | >93% Features: Milky Cover
LED Type: CREE JK 3030 - SMD Photocell
Thermal Conduc vity: Side / 20cm (Standard) SDCM: <6

MATERIAL STRUCTURE ALL ACCESSORIES & SCREWS ARE POWDER COATED OR ANODIZED
Housing Body: Die Cas ng Aluminium - ADC12 Housing Colour: Black/Grey
An -Aging Electrosta c Coa ng Clips: Stainless Steel
Lens Features: Clear - An -Glare Prism - An UV Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Photocell PWM Microwave
Emergency Op ons: 20% Back-up Power(Integrated)
Cer fica ons RoHs/IEC-60598/SANS Two Way Connector Blocks: Op onal

ANTI Corrosion Table

CATEGORY CORROSIVITY
C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity
