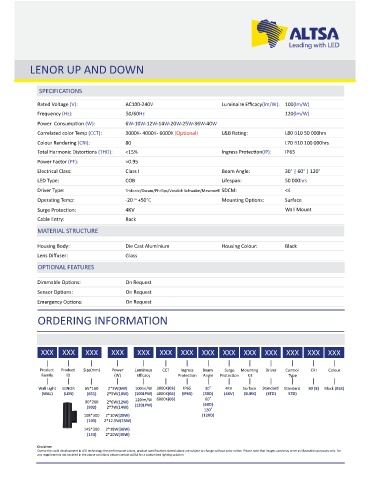

Page 359 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

LENOR UP AND DOWN

SPECIFICATIONS

Rated Voltage (V): AC100-240V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 120(lm/W)
Power Consump on (W): 6W-10W-12W-14W-20W-25W-36W-40W
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP65
Power Factor (PF): >0.95
Electrical Class: Class I Beam Angle: 30° | 60° | 120°
LED Type: COB Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: <4
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Surface

Surge Protec on: Wall Mount
Cable Entry: Back

MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: Black
Lens Diffuser: Glass
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit Type

Wall Light LENOR 65*160 2*3W(6W) 100lm/W 3000K(03) IP65 30° 4KV Surface Standard Standard 80 (8) Black (BLK)
(WAL) (LEN) (651) 2*5W(10W) (100LPW) 4000K(04) (IP65) (30D) (4KV) (SURK) (STD) STD)
120lm/W 6000K(06) 60°
90*260 2*6W(12W) (60D)
(902) 2*7W(14W) (120LPW)
120°
108*300 2*10W(20W) (120D)
(103) 2*12.5W(25W)
145*300 2*18W(36W)
(143) 2*20W(40W)

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
