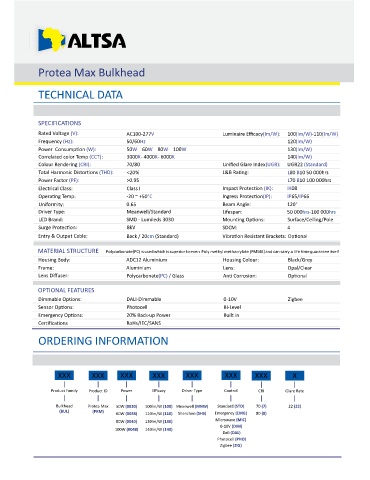

Protea Max Bulkhead

TECHNICAL DATA

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 100(lm/W)-110(lm/W)
Frequency (Hz): 50/60Hz 120(lm/W)
Power Consump on (W): 50W 60W 80W 100W 130(lm/W)
Correlated color Temp (CCT): 3000K- 4000K- 6000K 140(lm/W)
Colour Rendering (CRI): 70/80 Unified Glare Index(UGR): UGR22 (Standard)
Total Harmonic Distor ons (THD): <20% L&B Ra ng: L80 B10 50 000hrs
Power Factor (PF): >0.95 L70 B10 100 000hrs
Electrical Class: Class I Impact Protec on (IK): IK08
Opera ng Temp: -20 ~ +50°C Ingress Protec on(IP): IP65/IP66
Uniformity: 0.65 Beam Angle: 120°
Driver Type: Meanwell/Standard Lifespan: 50 000hrs-100 000hrs
LED Brand: SMD - Lumileds 3030 Moun ng Op ons: Surface/Ceiling/Pole
Surge Protec on: SDCM: 4
Entry & Output Cable: Back / 20cm (Standard) Vibra on Resistant Brackets: Op onal

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: ADC12 Aluminium Housing Colour: Black/Grey
Frame: Aluminium Lens: Opal/Clear
Lens Diffuser: Polycarbonate(PC) / Glass An Corrosion: Op onal

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Photocell Bi-Level
Emergency Op ons: 20% Back-up Power Built in
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX X

Product Family Product ID Power Efficacy Driver Type Control CRI Glare Rate

Bulkhead Protea Max 50W (0030) 100lm/W (100) Meanwell (MNW) Standard (STD) 70 (7) 22 (22)
(BUL) (PRM)
60W (0038) 110lm/W (110) Shenzhen (SHS) Emergency (EMG) 80 (8)
80W (0040) 130lm/W (130) Microwave (MIC)
0-10V (DIM)
100W (0048) 140lm/W (140)
Dali (DAL)
Photocell (PHO)
Zigbee (ZIG)
