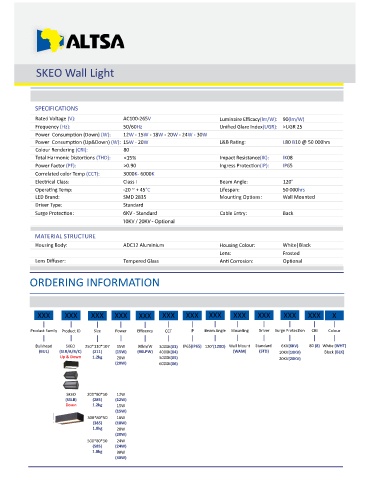

Page 362 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

SKEO Wall Light

SPECIFICATIONS
Rated Voltage (V): AC100-265V Luminaire Efficacy(lm/W): 90(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR 25
Power Consump on (Down) (W): 12W - 15W - 18W - 20W - 24W - 30W
Power Consump on (Up&Down) (W): 15W - 20W L&B Ra ng: L80 B10 @ 50 000hrs
Colour Rendering (CRI): 80
Total Harmonic Distor ons (THD): <15% Impact Resistance(IK): IK08
Power Factor (PF): >0.90 Ingress Protec on(IP): IP65
Correlated color Temp (CCT): 3000K- 6000K
Electrical Class: Class I Beam Angle: 120°
Opera ng Temp: -20 ~ + 45°C Lifespan: 50 000hrs
LED Brand: SMD 2835 Moun ng Op ons: Wall Mounted
Driver Type: Standard
Surge Protec on: Cable Entry: Back

MATERIAL STRUCTURE
Housing Body: ADC12 Aluminium Housing Colour: White|Black
Lens: Frosted
Lens Diffuser: Tempered Glass An Corrosion: Op onal

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficency CCT IP Beam Angle Moun ng Driver Surge Protec on CRI Colour

Bulkhead SKEO 250*110*107 15W 90lm/W 3000K(03) IP65(IP65) 120°(120D) Wall Mount Standard 6KV(6KV) 80 (8) White (WHT)
(BUL) (SLB/A/B/C) (211) (15W) (90LPW) 4000K(04) (WAM) (STD) 10KV(10KV) Black (BLK)
Up & Down 1.2kg 20W 5000K(05) 20KV(20KV)
(20W) 6000K(06)

SKEO 200*80*50 12W
(SSLB) (285) (12W)
Down 1.2kg 15W
(15W)
300*80*50 18W
(385) (18W)
1.8kg 20W
(20W)
500*80*50 24W
(585) (24W)
1.8kg 30W
(30W)
