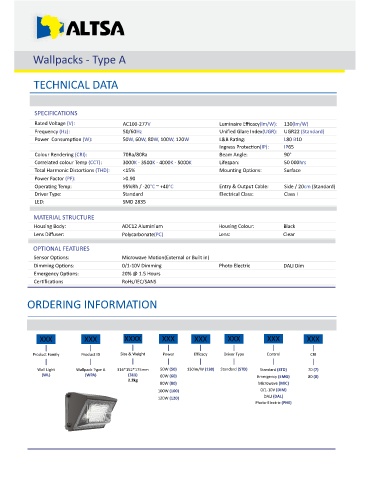

Wallpacks - Type A

TECHNICAL DATA

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22 (Standard)
Power Consump on (W): 50W, 60W, 80W, 100W, 120W L&B Ra ng: L80 B10
Ingress Protec on(IP): IP65
Colour Rendering (CRI): 70Ra/80Ra Beam Angle: 90°
Correlated colour Temp (CCT): 3000K - 3500K - 4000K - 5000K Lifespan: 50 000hrs
Total Harmonic Distor ons (THD): <15% Moun ng Op ons: Surface
Power Factor (PF): >0.90
Opera ng Temp: 95%Rh / -20°C ~ +40°C Entry & Output Cable: Side / 20cm (Standard)
Driver Type: Standard Electrical Class: Class I
LED: SMD 2835

MATERIAL STRUCTURE
Housing Body: ADC12 Aluminium Housing Colour: Black
Lens Diffuser: Polycarbonate(PC) Lens: Clear
OPTIONAL FEATURES
Sensor Op ons: Microwave Mo on(External or Built in)
Dimming Op ons: 0/1-10V Dimming Photo Electric DALI Dim
Emergency Op ons: 20% @ 1.5 Hours
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX

Product Family Product ID Size & Weight Power Efficacy Driver Type Control CRI

Wall Light Wallpack Type A 316*152*175mm 50W (50) 130lm/W (130) Standard (STD) Standard (STD) 70 (7)
(WL) (WPA) (311) 60W (60) Emergency (EMG) 80 (8)
2.2kg
80W (80) Microwave (MIC)
100W (100) 0/1-10V (DIM)
120W (120) DALI (DAL)
Photo-Electric (PHE)
