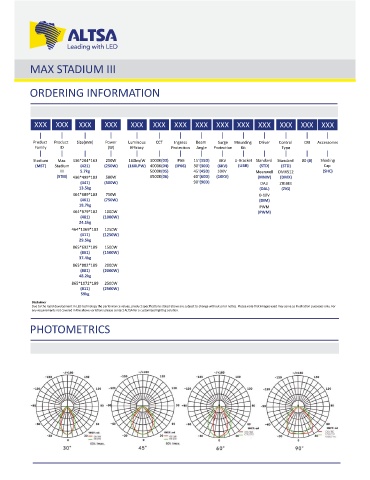

Page 306 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

MAX STADIUM III

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Accessories
Family ID (W) Efficacy Protec on Angle Protec on Kit Type
Stadium Max 436*284*163 250W 160lm/W 3000K(03) IP66 15°(15D) 6KV U-Bracket Standard Standard 80 (8) Shading
(MST) Stadium (421) (250W) (160LPW) 4000K(04) (IP66) 30°(30D) (6KV) (UBR) (STD) (STD) Cap
III 5.7kg 5000K(05) 45°(45D) 10KV Meanwell DMX512 (SHC)
(STIII) 436*499*183 500W 6500K(06) 60°(60D) (10KV) (MNW) (DMX)
(441) (500W) 90°(90D) DALI ZIGBEE
13.5kg (DAL) (ZIG)
464*689*183 750W 0-10V
(461) (750W) (DIM)
18.7kg PWM
464*879*182 1000W (PWM)
(481) (1000W)
24.1kg
464*1069*183 1250W
(411) (1250W)
29.5kg
865*692*189 1500W
(861) (1500W)
37.4kg
865*882*189 2000W
(881) (2000W)
48.2kg
865*1072*189 2500W
(811) (2500W)
59kg
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
PHOTOMETRICS
