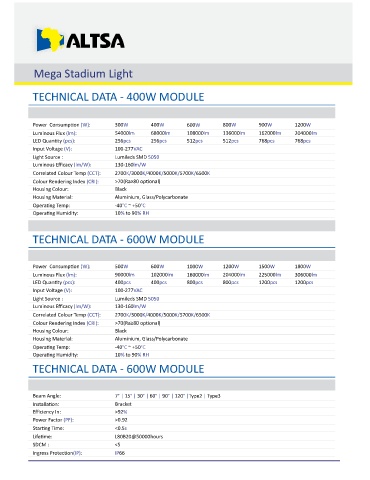

Page 310 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Mega Stadium Light

TECHNICAL DATA - 400W MODULE

Power Consump on (W): 300W 400W 600W 800W 900W 1200W
Luminous Flux (lm): 54000lm 68000lm 108000lm 136000lm 162000lm 204000lm
LED Quan ty (pcs): 256pcs 256pcs 512pcs 512pcs 768pcs 768pcs
Input Voltage (V): 100-277VAC
Light Source : Lumileds SMD 5050
Luminous Efficacy (lm/W): 130-160lm/W
Correlated Colour Temp (CCT): 2700K/3000K/4000K/5000K/5700K/6500K
Colour Rendering Index (CRI): >70(Ra≥80 op onal)
Housing Colour: Black
Housing Material: Aluminium, Glass/Polycarbonate
Opera ng Temp: -40°C ~ +50°C
Opera ng Humidity: 10% to 90% RH

TECHNICAL DATA - 600W MODULE

Power Consump on (W): 500W 600W 1000W 1200W 1500W 1800W
Luminous Flux (lm): 90000lm 102000lm 180000lm 204000lm 225000lm 306000lm
LED Quan ty (pcs): 400pcs 400pcs 800pcs 800pcs 1200pcs 1200pcs
Input Voltage (V): 100-277VAC
Light Source : Lumileds SMD 5050
Luminous Efficacy (lm/W): 130-160lm/W
Correlated Colour Temp (CCT): 2700K/3000K/4000K/5000K/5700K/6500K
Colour Rendering Index (CRI): >70(Ra≥80 op onal)
Housing Colour: Black
Housing Material: Aluminium, Glass/Polycarbonate
Opera ng Temp: -40°C ~ +50°C
Opera ng Humidity: 10% to 90% RH
TECHNICAL DATA - 600W MODULE

Beam Angle: 7° | 15° | 30° | 60° | 90° | 120° |Type2 | Type3
Installa on: Bracket
Efficiency In: >92%
Power Factor (PF): >0.92
Star ng Time: <0.5s
Life me: L80B20@50000hours
SDCM : <5
Ingress Protec on(IP): IP66
