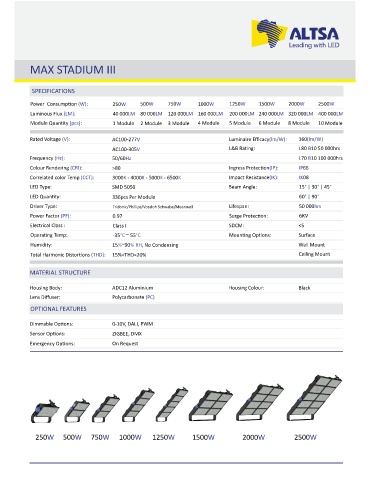

MAX STADIUM III

SPECIFICATIONS

Power Consump on (W): 250W 500W 750W 1000W 1250W 1500W 2000W 2500W
Luminous Flux (LM): 40 000LM 80 000LM 120 000LM 160 000LM 200 000LM 240 000LM 320 000LM 400 000LM
Module Quan ty (pcs): 1 Module 2 Module 3 Module 4 Module 5 Module 6 Module 8 Module 10 Module

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 160(lm/W)
AC100-305V L&B Ra ng: L80 B10 50 000hrs
Frequency (Hz): 50/60Hz L70 B10 100 000hrs
Colour Rendering (CRI): >80 Ingress Protec on(IP): IP66
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6500K Impact Resistance(IK): IK08
LED Type: SMD 5050 Beam Angle: 15° | 30° | 45°
LED Quan ty: 336pcs Per Module 60° | 90°
Driver Type: Tridonic/Phillips/Vossloh Schwabe/Meanwell Lifespan: 50 000hrs
Power Factor (PF): 0.97 Surge Protec on:
Electrical Class : Class I SDCM: <5
Opera ng Temp: -35°C ~ 55°C Moun ng Op ons: Surface
Humidity: 15%~90% RH, No Condensing Wall Mount
Total Harmonic Distor ons (THD): 15%<THD<20% Ceiling Mount

MATERIAL STRUCTURE

Housing Body: ADC12 Aluminium Housing Colour: Black
Lens Diffuser: Polycarbonate (PC)

OPTIONAL FEATURES

Dimmable Op ons: 0-10V, DALI, PWM
Sensor Op ons: ZIGBEE, DMX
Emergency Op ons: On Request

250W 500W 750W 1000W 1250W 1500W 2000W 2500W
