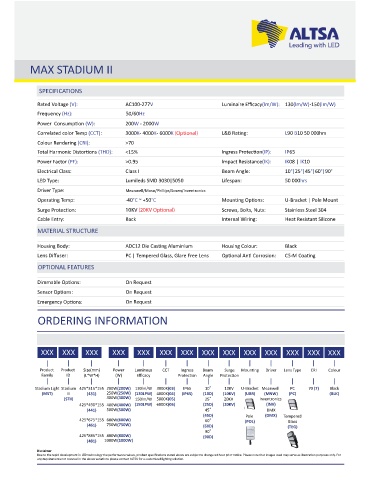

MAX STADIUM II



              SPECIFICATIONS

             Rated Voltage (V):            AC100-277V                     Luminaire Efficacy(lm/W): 130(lm/W)-150(lm/W)
             Frequency (Hz):               50/60Hz
             Power  Consump on (W):        200W - 2000W
             Correlated color Temp (CCT):  3000K- 4000K- 6000K            L&B Ra ng:           L90 B10 50 000hrs
             Colour Rendering (CRI):       >70
             Total Harmonic Distor ons (THD):  <15%                       Ingress Protec on(IP):  IP65
             Power Factor (PF):            >0.95                          Impact Resistance(IK):  IK08 | IK10
             Electrical Class:             Class I                        Beam Angle:          10°|25°|45°|60°|90°
             LED Type:                     Lumileds SMD 3030|5050         Lifespan:            50 000hrs
             Driver Type:                  Meanwell/Moso/Phillips/Sosen/Inventronics
             Opera ng Temp:                -40°C ~ +50°C                  Moun ng Op ons:      U-Bracket | Pole Mount

             Surge Protec on:                                             Screws, Bolts, Nuts:  Stainless Steel 304
             Cable Entry:                  Back                           Internal Wiring:     Heat Resistant Silicone

             MATERIAL STRUCTURE

             Housing Body:                 ADC12 Die Cas ng Aluminium     Housing Colour:      Black
             Lens Diffuser:                 PC | Tempered Glass, Glare Free Lens  Op onal An  Corrosion:  C5-M Coa ng
              OPTIONAL FEATURES


             Dimmable Op ons:              On Request
             Sensor Op ons:                On Request
             Emergency Op ons:             On Request
             ORDERING INFORMATION






               XXX    XXX    XXX      XXX     XXX     XXX    XXX    XXX    XXX    XXX    XXX    XXX    XXX    XXX


              Product   Product   Size(mm)  Power  Luminous  CCT  Ingress  Beam   Surge  Moun ng  Driver  Lens Type  CRI  Colour
               Family  ID    (L*W*H)   (W)    Efficacy        Protec on  Angle  Protec on

             Stadium Light Stadium 425*315*155  200W(200W)  130lm/W  3000K(03)  IP65  10°  10KV  U-Bracket  Meanwell   PC  70 (7)  Black
               (MST)   II     (431)  250W(250W)  (130LPW) 4000K(04)  (IP65)  (10D)  (10KV)  (UBR)  (MNW)  (PC)  (BLK)
                      (STII)        300W(300W)  150lm/W  5000K(05)   25°   20KV        Inventronics
                           425*490*155 400W(400W)  (150LPW) 6000K(06)  (25D)  (20KV)     (INV)
                              (441)  500W(500W)                      45°                 DMX
                                                                    (45D)         Pole   (DMX)  Tempered
                           425*675*155 600W(600W)                    60°          (POL)         Glass
                              (461)  750W(750W)                     (60D)                       (TEG)
                                                                     90°
                           425*885*155 800W(800W)                   (90D)
                              (481)  1000W(1000W)
             Disclaimer
             Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
             any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
