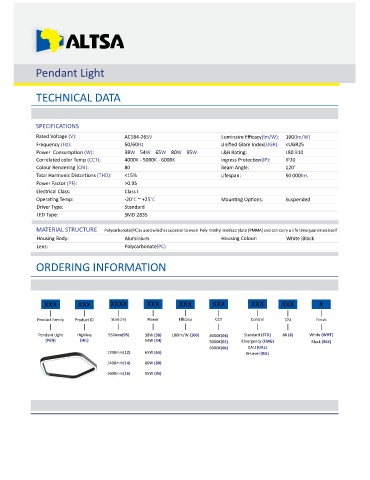

Pendant Light

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC184-265V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): <UGR25
Power Consump on (W): 38W 54W 65W 80W 95W L&B Ra ng: L80 B10
Correlated color Temp (CCT): 4000K - 5000K - 6000K Ingress Protec on(IP): IP20
Colour Rendering (CRI): 80 Beam Angle: 120°
Total Harmonic Distor ons (THD): <15% Lifespan: 50 000hrs
Power Factor (PF): >0.95
Electrical Class: Class I
Opera ng Temp: -20°C ~ +25°C Moun ng Op ons: Suspended
Driver Type: Standard
LED Type: SMD 2835
MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Housing Colour: White|Black
Lens: Polycarbonate(PC)

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size(cm) Power Efficacy CCT Control CRI Finish

Pandant Light Highline 950mm(95) 38W (38) 100lm/W (100) 4000K(04) Standard (STD) 80 (8) White (WHT)
(PEN) (HIL) 54W (54) 5000K(05) Emergency (EMG) Black (BLK)
6000K(06) DALI (DAL)
1200mm(12) 65W (65) Bi-Level (BIL)
1400mm(14) 80W (80)
1600mm(16) 95W (95)
