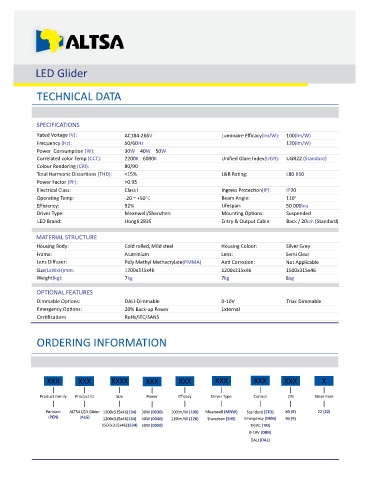

Page 201 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

LED Glider

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC184-266V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 120(lm/W)
Power Consump on (W): 30W 40W 50W
Correlated color Temp (CCT): 2200K - 6000K Unified Glare Index(UGR): UGR22 (Standard)
Colour Rendering (CRI): 80/90
Total Harmonic Distor ons (THD): <15% L&B Ra ng: L80 B10
Power Factor (PF): >0.95
Electrical Class: Class I Ingress Protec on(IP): IP20
Opera ng Temp: -20 ~ +50°C Beam Angle: 110°
Efficiency: 92% Lifespan: 50 000hrs
Driver Type: Meanwell/Shenzhen Moun ng Op ons: Suspended
LED Brand: Hongli 2835 Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE
Housing Body: Cold rolled, Mild steel Housing Colour: Silver Grey
Frame: Aluminium Lens: Semi Clear
Lens Diffuser: Poly Methyl Methacrylate(PMMA) An Corrosion: Not Applicable
Size(LxWxH)mm: 1200x315x46 1200x315x46 1500x315x46
Weight(kg): 7kg 7kg 8kg
OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Triac Dimmable
Emergency Op ons: 20% Back-up Power External
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate

Pendant ALTSA LED Glider 1200x315x46(134) 30W (0030) 100lm/W (100) Meanwell (MNW) Standard (STD) 80 (8) 22 (22)
(PEN) (ALG) 1200x315x46(134) 40W (0040) 120lm/W (120) Shenzhen (SHS) Emergency (EMG) 90 (9)
1500x315x46(1534) 50W (0050) TRIAC (TRI)
0-10V (DIM)
DALI (DAL)
