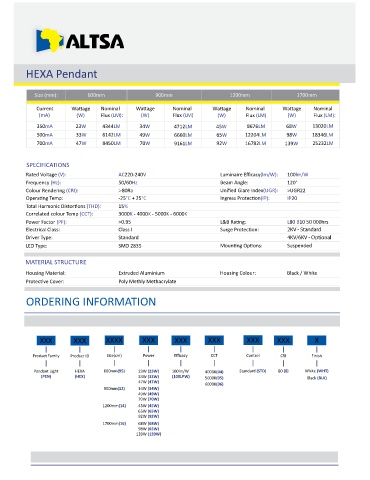

HEXA Pendant

Size (mm): 600mm 900mm 1200mm 1700mm

Current Wa age Nominal Wa age Nominal Wa age Nominal Wa age Nominal
(mA) (W) Flux (LM): (W) Flux (LM) (W) Flux (LM) (W) Flux (LM):
350mA 23W 4344LM 34W 4712LM 45W 8676LM 68W 13020LM
500mA 33W 6142LM 49W 6660LM 65W 12204LM 98W 18346LM
700mA 47W 8450LM 70W 9161LM 92W 16782LM 139W 25232LM

SPECIFICATIONS
Rated Voltage (V): AC220-240V Luminaire Efficacy(lm/W): 100lm/W
Frequency (Hz): 50/60Hz Beam Angle: 120°
Colour Rendering (CRI): 80Ra Unified Glare Index(UGR): >UGR22
Opera ng Temp: -25°C + 25°C Ingress Protec on(IP): IP20
Total Harmonic Distor ons (THD): 15%
Correlated colour Temp (CCT): 3000K - 4000K - 5000K - 6000K
Power Factor (PF): >0.95 L&B Ra ng: L80 B10 50 000hrs
Electrical Class: Class I Surge Protec on:
Driver Type: Standard
LED Type: SMD 2835 Moun ng Op ons: Suspended

MATERIAL STRUCTURE

Housing Material: Extruded Aluminium Housing Colour: Black / White
Protec ve Cover: Poly Methly Methacrylate

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size(cm) Power Efficacy CCT Control CRI Finish

Pandant Light HEXA 600mm(95) 23W (23W) 100lm/W 4000K(04) Standard (STD) 80 (8) White (WHT)
(PEN) (HEX) 33W (33W) (100LPW) 5000K(05) Black (BLK)
47W (47W) 6000K(06)
900mm(12) 34W (34W)
49W (49W)
70W (70W)
1200mm(14) 45W (45W)
65W (65W)
92W (92W)
1700mm(16) 68W (68W)
98W (65W)
139W (139W)
