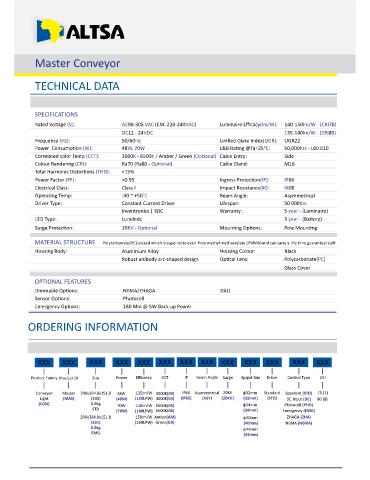

Page 344 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Master Conveyor

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC90-305 VAC (EM: 220-240VAC) Luminaire Efficacy(lm/W): 140-150lm/W - (CRI70)
DC12 - 24VDC 135-140lm/W - (CRI80)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR22
Power Consump on (W): 48W, 70W L&B Ra ng @Ta=25°C: 50,000hrs - L80 B10
Correlated color Temp (CCT): 3000K - 6500K / Amber / Green (Op onal) Cable Entry: Side
Colour Rendering (CRI): Ra70 (Ra80 - Op onal) Cable Gland: M16
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.95 Ingress Protec on(IP): IP66
Electrical Class: Class I Impact Resistance(IK): IK08
Opera ng Temp: -30 ~ +50°C Beam Angle: Asymmetrical
Driver Type: Constant Current Driver Lifespan: 50 000hrs
Inventronics | SDC Warranty : 5 year - (Luminaire)
LED Type: Lumileds 3 year - (Ba ery)
Surge Protec on: KV - Op onal Moun ng Op ons: Pole Moun ng

MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Alloy Housing Colour: Black
Robust unibody arc-shaped design Op cal Lens: Polycarbonate(PC)
Glass Cover

OPTIONAL FEATURES
Dimmable Op ons: NEMA/ZHAGA DALI
Sensor Op ons: Photocell
Emergency Op ons: 180 Min @ 5W Back-up Power

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size Power Efficency CCT IP Beam Angle Surge Spigot Size Driver Control Type CRI

Conveyor Master 290x394.8x151.8 48W 135lm/W 3000K(03) IP66 Asymmetrical 20KV φ32mm Standard Standard (STD) 70 (7)
Light (MAS) (231) (48W) (135LPW) 4000K(04) (IP66) (ASY) (20KV) (32mm) (STD) DC Input (DC) 80 (8)
(CON) 5.6kg 70W 140lm/W 5000K(05) φ34mm Photocell (PHO)
STD (70W) (140LPW) 6500K(06) (34mm) Emergency (EMG)
290x394.8x151.8 150lm/W Amber(AM) φ40mm ZHAGA (ZHA)
(231) (150LPW) Green(GR) (40mm) NEMA (NEMA)
5.9kg φ44mm
EMG (44mm)
