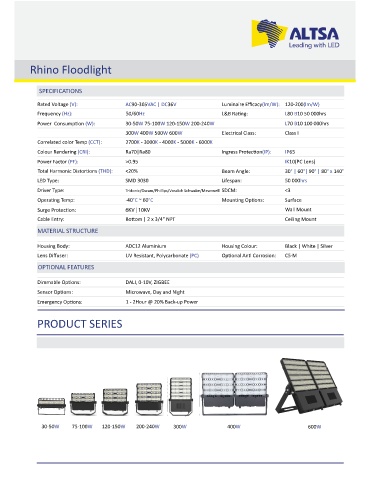

Page 278 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Rhino Floodlight

SPECIFICATIONS

Rated Voltage (V): AC90-305VAC | DC36V Luminaire Efficacy(lm/W): 120-200(lm/W)
Frequency (Hz): 50/60Hz L&B Ra ng: L80 B10 50 000hrs
Power Consump on (W): 30-50W 75-100W 120-150W 200-240W L70 B10 100 000hrs
300W 400W 500W 600W Electrical Class: Class I
Correlated color Temp (CCT): 2700K - 3000K - 4000K - 5000K - 6000K
Colour Rendering (CRI): Ra70|Ra80 Ingress Protec on(IP): IP65
Power Factor (PF): >0.95 IK10(PC Lens)
Total Harmonic Distor ons (THD): <20% Beam Angle: 30° | 60°| 90° | 80° x 140°
LED Type: SMD 3030 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: <3
Opera ng Temp: -40°C ~ 60°C Moun ng Op ons: Surface

Surge Protec on: Wall Mount
Cable Entry: Bo om | 2 x 3/4" NPT Ceiling Mount

MATERIAL STRUCTURE

Housing Body: ADC12 Aluminium Housing Colour: Black | White | Silver
Lens Diffuser: UV Resistant, Polycarbonate (PC) Op onal An Corrosion: C5-M
OPTIONAL FEATURES

Dimmable Op ons: DALI, 0-10V, ZIGBEE
Sensor Op ons: Microwave, Day and Night
Emergency Op ons: 1 - 2Hour @ 20% Back-up Power

PRODUCT SERIES

30-50W 75-100W 120-150W 200-240W 300W 400W 600W
