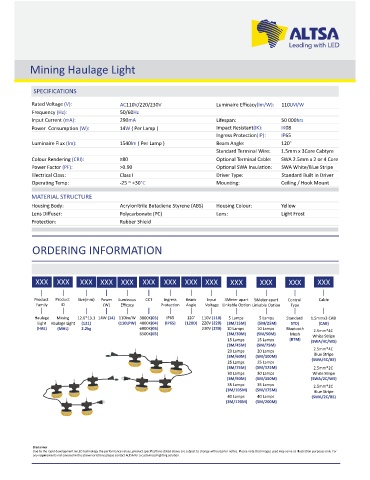

Mining Haulage Light

SPECIFICATIONS

Rated Voltage (V): AC110V/220/230V Luminaire Efficacy(lm/W): 110LM/W
Frequency (Hz): 50/60Hz
Input Current (mA): 290mA Lifespan: 50 000hrs
Power Consump on (W): 14W ( Per Lamp ) Impact Resistant(IK): IK08
Ingress Protec on(IP): IP65
Luminaire Flux (lm): 1540lm ( Per Lamp ) Beam Angle: 120°
Standard Terminal Wire: 1.5mm x 3Core Cabtyre
Colour Rendering (CRI): ≥80 Op onal Terminal Cable: SWA 2.5mm x 2 or 4 Core
Power Factor (PF): >0.90 Op onal SWA Insula on: SWA White/Blue Stripe
Electrical Class: Class I Driver Type: Standard Built in Driver
Opera ng Temp: -25 ~ +30°C Moun ng: Ceiling / Hook Mount

MATERIAL STRUCTURE
Housing Body: Acrylonitrile Butadiene Styrene (ABS) Housing Colour: Yellow
Lens Diffuser: Polycarbonate (PC) Lens: Light Frost
Protec on: Rubber Shield

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Input 3Meter apart 5Meter apart Control Cable
Family ID (W) Efficacy Protec on Angle Voltage Linkable Op on Linkable Op on Type

Haulage Mining 12.6*13.1 14W (14) 110lm/W 3000K(03) IP65 120° 110V (110) 5 Lamps 5 Lamps Standard 1.5mmx3 CAB
Light Haulage Light (121) (110LPW) 4000K(04) (IP65) (120D) 220V (220) (3M/15M) (5M/25M) STD) (CAB)
(HAL) (MHL) 2.2kg 6000K(06) 230V (230) 10 Lamps 10 Lamps Bluetooth 2.5mm*4C
6500K(65) (3M/30M) (5M/50M) Mesh White Stripe
15 Lamps 15 Lamps (BTM) (SWA/4C/WS)
(3M/45M) (5M/75M)
20 Lamps 20 Lamps 2.5mm*4C
(3M/60M) (5M/100M) Blue Stripe
25 Lamps 25 Lamps (SWA/4C/BS)
(3M/75M) (5M/125M) 2.5mm*2C
30 Lamps 30 Lamps White Stripe
(3M/90M) (5M/150M) (SWA/2C/WS)
35 Lamps 35 Lamps 2.5mm*2C
(3M/105M) (5M/175M) Blue Stripe
40 Lamps 40 Lamps (SWA/2C/BS)
(3M/120M) (5M/200M)

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
