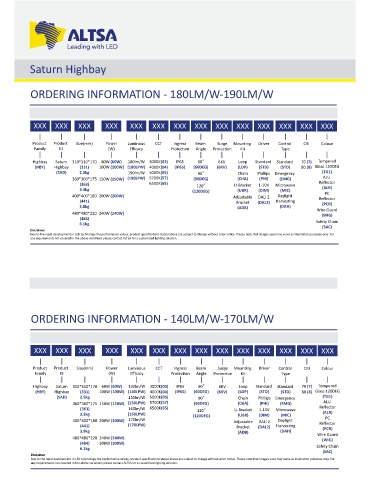

P. 268

Saturn Highbay

ORDERING INFORMATION - 180LM/W-190LM/W

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Eﬃcacy Protec on Angle Protec on Kit Type

Highbay Saturn 310*310*170 60W (60W) 180lm/W 3000K(03) IP65 60° 6KV Loop Standard Standard 70 (7) Tempered
(HBY) Highbay (331) 100W (100W) (180LPW) 4000K(04) (IP65) (60DEG) (6KV) (LOP) (STD) (STD) 80 (8) Glass 120DEG
(SAD) 2.5kg 190lm/W 5000K(05) 90° Chain Phillips Emergency (TG1)
360*360*175 150W (150W) (190LPW) 5700K(57) (90DEG) (CHA) (PHI) (EMG) ALU
(363) 6500K(65) 120° U-Bracket 1-10V Microwave Reﬂector
3.3kg (120DEG) (UBR) (DIM) (MIC) (ALR)
PC
400*400*180 200W (200W) Adjustable DALI 2 Daylight Reﬂector
(441) Bracket (DAL2) Harves ng
3.8kg (ADB) (DAH) (PCR)
480*480*220 240W (240W) Wire Guard
(WIG)
(484)
6.1kg Safety Chain
Disclaimer (SAC)
Due to the rapid development in LED technology the performance values, product speciﬁca ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.

ORDERING INFORMATION - 140LM/W-170LM/W

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Eﬃcacy Protec on Angle Protec on Kit Type

Highbay Saturn 310*310*170 60W (60W) 140lm/W 3000K(03) IP65 60° 6KV Loop Standard Standard 70 (7) Tempered
(HBY) Highbay (331) 100W (100W) (140LPW) 4000K(04) (IP65) (60DEG) (6KV) (LOP) (STD) (STD) 80 (8) Glass 120DEG
(SAD) 2.5kg 150lm/W 5000K(05) 90° Chain Phillips Emergency (TG1)
360*360*175 150W (150W) (150LPW) 5700K(57) (90DEG) (CHA) (PHI) (EMG) ALU
(363) 160lm/W 6500K(65) 120° U-Bracket 1-10V Microwave Reﬂector
3.3kg (160LPW) (120DEG) (UBR) (DIM) (MIC) (ALR)
400*400*180 200W (200W) 170lm/W Adjustable DALI 2 Daylight PC
(441) (170LPW) Bracket (DAL2) Harves ng Reﬂector
(PCR)
3.8kg (ADB) (DAH) Wire Guard
480*480*220 240W (240W) (WIG)
(484) 300W (300W)
6.1kg Safety Chain
(SAC)
Disclaimer
Due to the rapid development in LED technology the performance values, product speciﬁca ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
