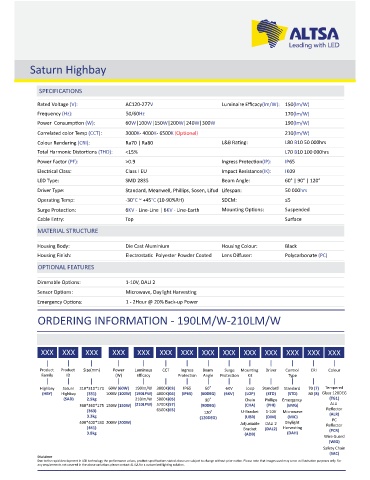

Page 267 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Saturn Highbay

SPECIFICATIONS

Rated Voltage (V): AC120-277V Luminaire Efficacy(lm/W): 150(lm/W)
Frequency (Hz): 50/60Hz 170(lm/W)
Power Consump on (W): 60W|100W|150W|200W|240W|300W 190(lm/W)
Correlated color Temp (CCT): 3000K- 4000K- 6500K 210(lm/W)
Colour Rendering (CRI): Ra70 | Ra80 L&B Ra ng: L80 B10 50 000hrs
Total Harmonic Distor ons (THD): <15% L70 B10 100 000hrs
Power Factor (PF): >0.9 Ingress Protec on(IP): IP65
Electrical Class: Class I EU Impact Resistance(IK): IK09
LED Type: SMD 2835 Beam Angle: 60° | 90° | 120°
Driver Type: Standard, Meanwell, Phillips, Sosen, Lifud Lifespan: 50 000hrs
Opera ng Temp: -30°C ~ +45°C (10-90%RH) SDCM: ≤5

Surge Protec on: 6KV - Line-Line | 6KV - Line-Earth Moun ng Op ons: Suspended
Cable Entry: Top Surface

MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: Black
Housing Finish: Electrosta c Polyester Powder Coated Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: 1-10V, DALI 2
Sensor Op ons: Microwave, Daylight Harves ng
Emergency Op ons: 1 - 2Hour @ 20% Back-up Power
ORDERING INFORMATION - 190LM/W-210LM/W

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit Type

Highbay Saturn 310*310*170 60W (60W) 190lm/W 3000K(03) IP65 60° 6KV Loop Standard Standard 70 (7) Tempered
(HBY) Highbay (331) 100W (100W) (190LPW) 4000K(04) (IP65) (60DEG) (6KV) (LOP) (STD) (STD) 80 (8) Glass 120DEG
(SAD) 2.5kg 210lm/W 5000K(05) 90° Chain Phillips Emergency (TG1)
360*360*175 150W (150W) (210LPW) 5700K(57) (90DEG) (CHA) (PHI) (EMG) ALU
(363) 6500K(65) 120° U-Bracket 1-10V Microwave Reflector
3.3kg (120DEG) (UBR) (DIM) (MIC) (ALR)
400*400*180 200W (200W) Adjustable DALI 2 Daylight PC
(441) Bracket (DAL2) Harves ng Reflector
(PCR)
3.8kg (ADB) (DAH) Wire Guard
(WIG)
Safety Chain
(SAC)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
