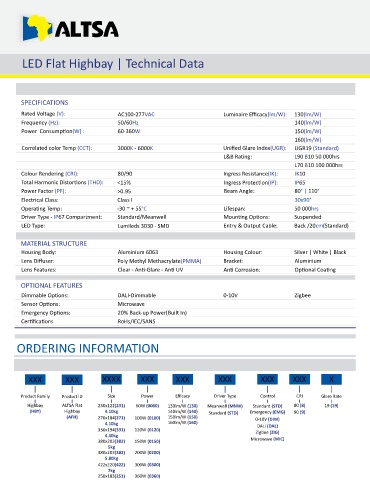

LED Flat Highbay | Technical Data

SPECIFICATIONS

Rated Voltage (V): AC100-277VAC Luminaire Efficacy(lm/W): 130(lm/W)
Frequency (Hz): 50/60Hz 140(lm/W)
Power Consump on(W) : 60-360W 150(lm/W)
160(lm/W)
Correlated color Temp (CCT): 3000K - 6000K Unified Glare Index(UGR): UGR19 (Standard)
L&B Ra ng: L90 B10 50 000hrs
L70 B10 100 000hrs
Colour Rendering (CRI): 80/90 Ingress Resistance(IK): IK10
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP65
Power Factor (PF): >0.95 Beam Angle: 80° | 110°
Electrical Class: Class I 30x90°
Opera ng Temp: -30 ~ + 55°C Lifespan: 50 000hrs
Driver Type - IP67 Compartment: Standard/Meanwell Moun ng Op ons: Suspended
LED Type: Lumileds 3030 - SMD Entry & Output Cable: Back /20cm(Standard)

MATERIAL STRUCTURE
Housing Body: Aluminium 6063 Housing Colour: Silver | White | Black
Lens Diffuser: Poly Methyl Methacrylate(PMMA) Bracket: Aluminium
Lens Features: Clear - An -Glare - An UV An Corrosion: Op onal Coa ng

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Microwave
Emergency Op ons: 20% Back-up Power(Built In)
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX X

Product Family Product ID Size Power Efficacy Driver Type Control CRI Glare Rate
Highbay ALTSA Flat 230x122(231) 60W (0060) 130lm/W (130) Meanwell (MNW) Standard (STD) 80 (8) 19 (19)
(HBY) Highbay 4.10kg 140lm/W (140) Standard (STD) Emergency (EMG) 90 (9)
(AFH) 270x184(271) 100W (0100) 150lm/W (150) 0-10V (DIM)
4.10kg 160lm/W (160) DALI (DAL)
330x194(331) 120W (0120) Zigbee (ZIG)
4.40kg
380x203(382) 150W (0150) Microwave (MIC)
5kg
380x203(382) 200W (0200)
5.80kg
422x220(422) 300W (0300)
7kg
250x183(251) 360W (0360)
