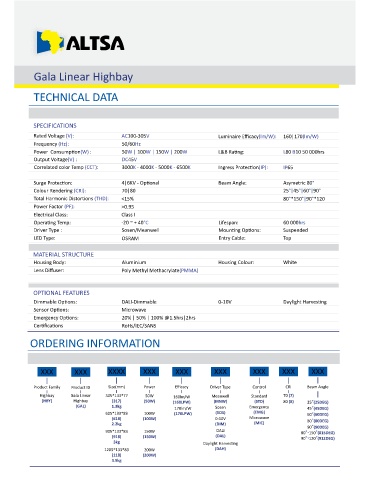

Gala Linear Highbay

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-305V Luminaire Efficacy(lm/W): 160|170(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on(W) : 50W | 100W | 150W | 200W L&B Ra ng: L80 B10 50 000hrs
Output Voltage(V) : DC45V
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6500K Ingress Protec on(IP): IP65

Surge Protec on: 4|6KV - Op onal Beam Angle: Asymetric 80°
Colour Rendering (CRI): 70|80 25°|45°|60°|90°
Total Harmonic Distor ons (THD): <15% 80°*150°|90°*120
Power Factor (PF): >0.95
Electrical Class: Class I
Opera ng Temp: -20 ~ + 40°C Lifespan: 60 000hrs
Driver Type : Sosen/Meanwell Moun ng Op ons: Suspended
LED Type: OSRAM Entry Cable: Top

MATERIAL STRUCTURE
Housing Body: Aluminium Housing Colour: White
Lens Diffuser: Poly Methyl Methacrylate(PMMA)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Daylight Harves ng
Sensor Op ons: Microwave
Emergency Op ons: 20% | 50% | 100% @1.5hrs|2hrs
Cer fica ons RoHs/IEC/SANS

ORDERING INFORMATION

XXX XXX XXXX XXX XXX XXX XXX XXX XXX

Product Family Product ID Size(mm) Power Efficacy Driver Type Control CRI Beam Angle
Highbay Gala Linear 305*133*77 50W 160lm/W Meanwell Standard 70 (7)
(HBY) Highbay (317) (50W) (160LPW) (MNW) (STD) 80 (8) 25°(25DEG)
(GAL) 1.3kg 170lm/W Sosen Emergency 45°(45DEG)
605*133*83 100W (170LPW) (SOS) (EMG) 60°(60DEG)
(618) (100W) 0-10V Microwave 80°(80DEG)
2.2kg (DIM) (MIC) 90°(90DEG)
905*133*83 150W DALI 80°*150°(815DEG)
(918) (150W) (DAL) 90°*120°(912DEG)
3kg Daylight Harves ng
1205*133*83 200W (DAH)
(118) (200W)
3.5kg
