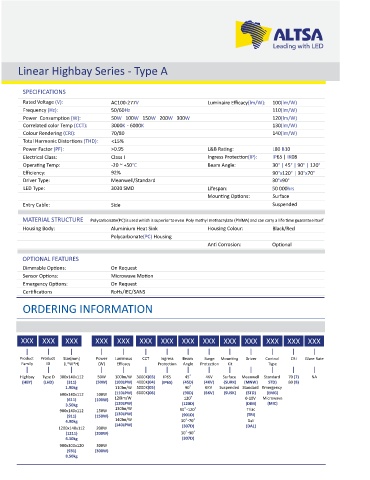

Page 254 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Linear Highbay Series - Type A

SPECIFICATIONS
Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 110(lm/W)
Power Consump on (W): 50W 100W 150W 200W 300W 120(lm/W)
Correlated color Temp (CCT): 3000K - 6000K 130(lm/W)
Colour Rendering (CRI): 70/80 140(lm/W)
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.95 L&B Ra ng: L80 B10
Electrical Class: Class I Ingress Protec on(IP): IP65 | IK08
Opera ng Temp: -20 ~ +50°C Beam Angle: 30° | 45° | 90° | 120°
Efficiency: 92% 90°x120° | 30°x70°
Driver Type: Meanwell/Standard 30°x90°
LED Type: 3030 SMD Lifespan: 50 000hrs
Moun ng Op ons: Surface
Entry Cable: Side Suspended
MATERIAL STRUCTURE Polycarbonate(PC)isusedwhichissuperiortoeven Poly methyl methacrylate (PMMA)and can carry a life me guaranteeitself
Housing Body: Aluminium Heat Sink Housing Colour: Black/Red
Polycarbonate(PC) Housing
An Corrosion: Op onal
OPTIONAL FEATURES
Dimmable Op ons: On Request
Sensor Op ons: Microwave Mo on
Emergency Op ons: On Request
Cer fica ons RoHs/IEC/SANS
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Glare Rate
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Highbay Type D 300x140x112 50W 100lm/W 3000K(03) IP65 45° 4KV Surface Meanwell Standard 70 (7) NA
(HBY) (LHD) (311) (50W) (100LPW) 4000K(04) (IP65) (45D) (4KV) (SURK) (MNW) STD) 80 (8)
1.90kg 110lm/W 5000K(05) 90° 6KV Suspended Standard Emergency
600x140x112 100W (110LPW) 6000K(06) (90D) (6KV) (SUSK) (STD) (EMG)
(611) (100W) 120lm/W 120° 0-10V Microwave
3.50kg (120LPW) (120D) (DIM) (MIC)
900x140x112 150W 130lm/W 90°*120° Triac
(911) (150W) (130LPW) (901D) (TRI)
4.90kg 140lm/W 30°*70° Dali
(140LPW)
1200x140x112 200W (307D) (DAL)
(1211) (200W) 30°*90°
6.10kg (307D)
900x300x120 300W
(931) (300W)
8.50kg
