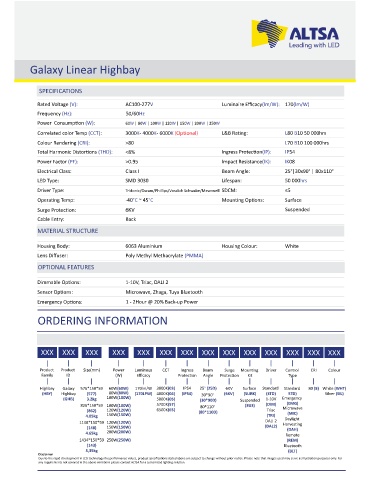

Page 243 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Galaxy Linear Highbay

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 170(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 60W | 80W | 100W | 120W | 150W | 200W | 250W
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): >80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <8% Ingress Protec on(IP): IP54
Power Factor (PF): >0.95 Impact Resistance(IK): IK08
Electrical Class: Class I Beam Angle: 25°|30x90° | 80x110°
LED Type: SMD 3030 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: ≤5
Opera ng Temp: -40°C ~ 45°C Moun ng Op ons: Surface

Surge Protec on: Suspended
Cable Entry: Back

MATERIAL STRUCTURE

Housing Body: 6063 Aluminium Housing Colour: White
Lens Diffuser: Poly Methyl Methacrylate (PMMA)
OPTIONAL FEATURES

Dimmable Op ons: 1-10V, Triac, DALI 2
Sensor Op ons: Microwave, Zhaga, Tuya Bluetooth
Emergency Op ons: 1 - 2Hour @ 20% Back-up Power
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit Type

Highbay Galaxy 576*150*59 60W(60W) 170lm/W 3000K(03) IP54 25° (25D) 6KV Surface Standard Standard 80 (8) White (WHT)
(HBY) Highbay (577) 80W(80W) (170LPW) 4000K(04) (IP54) 30*90° (6KV) (SURK) (STD) STD) Silver (SIL)
(GHB) 3.2kg 100W(100W) 5000K(05) (30*90D) Suspended 1-10V Emergency
826*150*59 100W(100W) 5700K(57) 80*110° (SUS) (DIM) (EMG)
(862) 120W(120W) 6500K(65) (80*110D) Triac Microwave
(MIC)
4.05kg 150W(150W) (TRI) Daylight
1148*150*59 120W(120W) DALI 2 Harves ng
(148) 150W(150W) (DAL2) (DAH)
4.65kg 200W(200W) Remote
1434*150*59 250W(250W) (REM)
(143) Bluetooth
5,35kg (BLT)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
