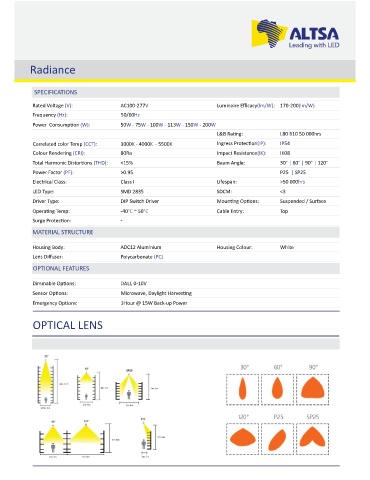

Page 238 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Radiance

SPECIFICATIONS

Rated Voltage (V): AC100-277V Luminaire Efficacy(lm/W): 170-200(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 50W - 75W - 100W - 113W - 150W - 200W
L&B Ra ng: L80 B10 50 000hrs
Correlated color Temp (CCT): 3000K - 4000K - 5500K Ingress Protec on(IP): IP54
Colour Rendering (CRI): 80Ra Impact Resistance(IK): IK08
Total Harmonic Distor ons (THD): <15% Beam Angle: 30° | 60° | 90° | 120°
Power Factor (PF): >0.95 P25 | SP25
Electrical Class: Class I Lifespan: >50 000hrs
LED Type: SMD 2835 SDCM: <3
Driver Type: DIP Switch Driver Moun ng Op ons: Suspended / Surface
Opera ng Temp: -40°C ~ 50°C Cable Entry: Top
Surge Protec on:
MATERIAL STRUCTURE

Housing Body: ADC12 Aluminium Housing Colour: White
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: DALI, 0-10V
Sensor Op ons: Microwave, Daylight Harves ng
Emergency Op ons: 3Hour @ 15W Back-up Power

OPTICAL LENS
