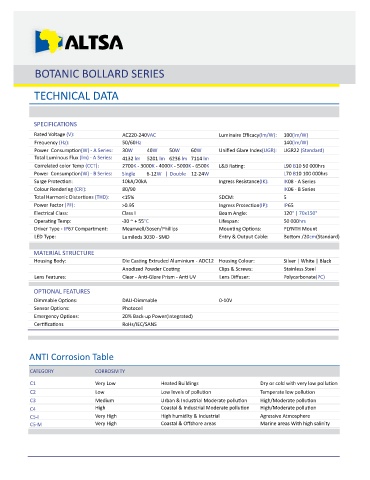

BOTANIC BOLLARD SERIES

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC220-240VAC Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 140(lm/W)
Power Consump on(W) - A Series: 30W 40W 50W 60W Unified Glare Index(UGR): UGR22 (Standard)
Total Luminous Flux (lm) - A Series: 4132 lm 5201 lm 6236 lm 7114 lm
Correlated color Temp (CCT): 2700K - 3000K - 4000K - 5000K - 6500K L&B Ra ng: L90 B10 50 000hrs
Power Consump on(W) - B Series: Single 6-12W | Double 12-24W L70 B10 100 000hrs
Surge Protec on: 10kA/20kA Ingress Resistance(IK): IK08 - A Series
Colour Rendering (CRI): 80/90 IK06 - B Series
Total Harmonic Distor ons (THD): <15% SDCM: 5
Power Factor (PF): >0.95 Ingress Protec on(IP): IP65
Electrical Class: Class I Beam Angle: 120° | 70x150°
Opera ng Temp: -30 ~ + 55°C Lifespan: 50 000hrs
Driver Type - IP67 Compartment: Meanwell/Sosen/Phillips Moun ng Op ons: PLYNTH Mount
LED Type: Lumileds 3030 - SMD Entry & Output Cable: Bo om /20cm(Standard)

MATERIAL STRUCTURE
Housing Body: Die Cas ng Extruded Aluminium - ADC12 Housing Colour: Silver | White | Black
Anodized Powder Coa ng Clips & Screws: Stainless Steel
Lens Features: Clear - An -Glare Prism - An UV Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V
Sensor Op ons: Photocell
Emergency Op ons: 20% Back-up Power(Integrated)
Cer fica ons RoHs/IEC/SANS

ANTI Corrosion Table

CATEGORY CORROSIVITY
C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity
