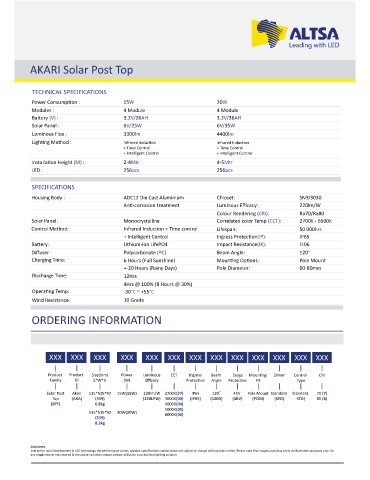

AKARI Solar Post Top

TECHNICAL SPECIFICATIONS
Power Consump on : 15W 20W
Modules : 4 Module 4 Module
Ba ery (V) : 3.2V/26AH 3.2V/36AH
Solar Panel : 6V/25W 6V/35W
Luminous Flux : 3300lm 4400lm
Ligh ng Method : Infrared Induc on Infrared Induc on
+ Time Control + Time Control
+ Intelligent Control + Intelligent Control
Installa on Height (M) : 2-4Mtr 4-5Mtr
LED : 256pcs 256pcs

SPECIFICATIONS
Housing Body : ADC12 Die Cast Aluminium Chipset: SMD3030
An -corrosion treatment Luminous Efficacy: 220lm/W
Colour Rendering (CRI): Ra70/Ra80
Solar Panel: Monocrystalline Correlated color Temp (CCT): 2700K - 6500K
Control Method: Infrared Induc on + Time control Lifespan: 50 000hrs
+ Intelligent Control Ingress Protec on(IP): IP65
Ba ery: Lithium-ion LifePO4 Impact Resistance(IK): IK06
Diffuser : Polycarbonate (PC) Beam Angle: 120°
Charging Time: 6 Hours (Full Sunshine) Moun ng Op ons: Pole Mount
+-20 Hours (Rainy Days) Pole Diameter: 60-80mm
Discharge Time: 12Hrs
4Hrs @ 100% (8 Hours @ 30%)
Opera ng Temp: -30°C ~ +55°C
Wind Resistance: 10 Grade

ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI
Family ID L*W*H (W) Efficacy Protec on Angle Protec on Kit Type
Solar Post Akari 515*515*92 15W(15W) 220lm/W 2700K(27) IP65 120° 4KV Pole Mount Standard Standard 70 (7)
Top (AKA) (559) (220LPW) 3000K(03) (IP65) (120D) (4KV) (POM) (STD) STD) 80 (8)
(SPT) 6.8kg 4000K(04)
5000K(05)
515*515*92 20W(20W) 6000K(06)
(559)
8.3kg

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
