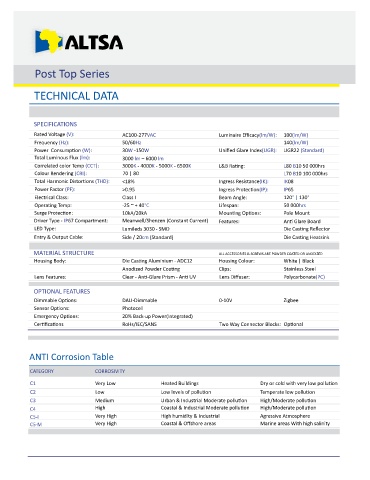

Post Top Series

TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC100-277VAC Luminaire Efficacy(lm/W): 100(lm/W)
Frequency (Hz): 50/60Hz 140(lm/W)
Power Consump on (W): 30W -150W Unified Glare Index(UGR): UGR22 (Standard)
Total Luminous Flux (lm): 3000 lm – 6000 lm
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 6500K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 70 | 80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <18% Ingress Resistance(IK): IK08
Power Factor (PF): >0.95 Ingress Protec on(IP): IP65
Electrical Class: Class I Beam Angle: 120° | 130°
Opera ng Temp: -25 ~ + 40°C Lifespan: 50 000hrs
Surge Protec on: 10kA/20kA Moun ng Op ons: Pole Mount
Driver Type - IP67 Compartment: Meanwell/Shenzen (Constant Current) Features: An Glare Board
LED Type: Lumileds 3030 - SMD Die Cas ng Reflector
Entry & Output Cable: Side / 20cm (Standard) Die Cas ng Heatsink

MATERIAL STRUCTURE ALL ACCESSORIES & SCREWS ARE POWDER COATED OR ANODIZED
Housing Body: Die Cas ng Aluminium - ADC12 Housing Colour: White | Black
Anodized Powder Coa ng Clips: Stainless Steel
Lens Features: Clear - An -Glare Prism - An UV Lens Diffuser: Polycarbonate(PC)

OPTIONAL FEATURES
Dimmable Op ons: DALI-Dimmable 0-10V Zigbee
Sensor Op ons: Photocell
Emergency Op ons: 20% Back-up Power(Integrated)
Cer fica ons RoHs/IEC/SANS Two Way Connector Blocks: Op onal

ANTI Corrosion Table

CATEGORY CORROSIVITY
C1 Very Low Heated Buildings Dry or cold with very low pollu on
C2 Low Low levels of pollu on Temperate low pollu on
C3 Medium Urban & Industrial Moderate pollu on High/Moderate pollu on
C4 High Coastal & Industrial Moderate pollu on High/Moderate pollu on
C5-I Very High High humidity & Industrial Agressive Atmosphere
C5-M Very High Coastal & Offshore areas Marine areas With high salinity
