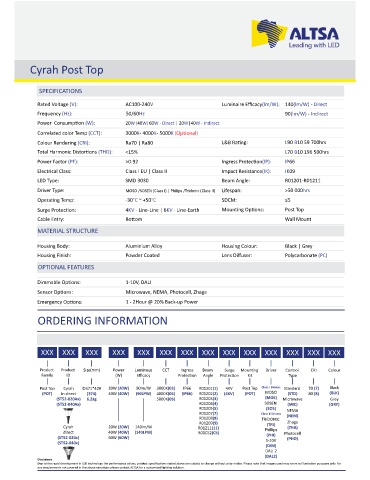

Page 381 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Cyrah Post Top

SPECIFICATIONS

Rated Voltage (V): AC100-240V Luminaire Efficacy(lm/W): 140(lm/W) - Direct
Frequency (Hz): 50/60Hz 90(lm/W) - Indirect
Power Consump on (W): 20W|40W|60W - Direct | 20W|40W - Indirect
Correlated color Temp (CCT): 3000K- 4000K- 5000K
Colour Rendering (CRI): Ra70 | Ra80 L&B Ra ng: L90 B10 59 700hrs
Total Harmonic Distor ons (THD): <15% L70 B10 196 500hrs
Power Factor (PF): >0.92 Ingress Protec on(IP): IP66
Electrical Class: Class I EU | Class II Impact Resistance(IK): IK09
LED Type: SMD 3030 Beam Angle: R01201-R01211
Driver Type: MOSO /SOSEN (Class I) | Philips /Tridonic (Class II) Lifespan: >50 000hrs
Opera ng Temp: -30°C ~ +50°C SDCM: ≤5

Surge Protec on: 4KV - Line-Line | 6KV - Line-Earth Moun ng Op ons: Post Top
Cable Entry: Bo om Wall Mount

MATERIAL STRUCTURE

Housing Body: Aluminium Alloy Housing Colour: Black | Grey
Housing Finish: Powder Coated Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: 1-10V, DALI
Sensor Op ons: Microwave, NEMA, Photocell, Zhaga
Emergency Op ons: 1 - 2Hour @ 20% Back-up Power
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit Type

Post Top Cyrah Φ371*420 20W (20W) 90lm/W 3000K(03) IP66 R01201(1) 4KV Post Top Class I Drivers Standard 70 (7) Black
(POT) In direct (374) 40W (40W) (90LPW) 4000K(04) (IP66) R01202(2) (4KV) (POT) MOSO (STD) 80 (8) (BLK)
(ST52-020Ax) 6.2kg 5000K(05) R01203(3) (MOS) Microwave Grey
(ST52-040Ax) R01204(4) SOSEN (MIC) (GRY)
R01205(5) (SOS) NEMA
R01207(7) Class II Drivers (NEM)
R01208(8) TRIDONIC
R01209(9) (TRI) Zhaga
Cyrah 20W (20W) 140lm/W R01211(11) Phillips (ZHA)
direct 40W (40W) (140LPW) R00C52(C5) Photocell
(ST52-020x) 60W (60W) (PHI) (PHO)
(ST52-040x) 1-10V
(DIM)
DALI 2
(DAL2)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
