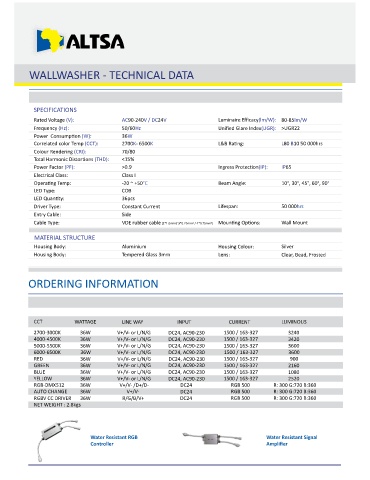

WALLWASHER - TECHNICAL DATA

SPECIFICATIONS
Rated Voltage (V): AC90-240V / DC24V Luminaire Efficacy(lm/W): 80-85lm/W
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR22
Power Consump on (W): 36W
Correlated color Temp (CCT): 2700K- 6500K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 70/80
Total Harmonic Distor ons (THD): <15%
Power Factor (PF): >0.9 Ingress Protec on(IP): IP65
Electrical Class: Class I
Opera ng Temp: -20 ~ +50°C Beam Angle: 10°, 30°, 45°, 60°, 90°
LED Type: COB
LED Quan ty: 36pcs
Driver Type: Constant Current Lifespan: 50 000hrs
Entry Cable: Side
Cable Type: VDE rubber cable (2*1.0mm²/ 3*0.75mm² / 4*0.75mm²) Moun ng Op ons: Wall Mount

MATERIAL STRUCTURE
Housing Body: Aluminium Housing Colour: Silver
Housing Body: Tempered Glass 3mm Lens: Clear, Bead, Frosted

ORDERING INFORMATION

CCT WATTAGE LINE WAY INPUT CURRENT LUMINOUS
2700-3000K 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 3240
4000-4500K 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 3420
5000-5500K 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 3600
6000-6500K 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 3600
RED 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 900
GREEN 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 2160
BLUE 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 1080
YELLOW 36W V+/V- or L/N/G DC24, AC90-230 1500 / 163-327 2520
RGB-DMX512 36W V+/V- /D+/D- DC24 RGB 500 R: 300 G:720 B:360
AUTO CHANGE 36W V+/V- DC24 RGB 500 R: 300 G:720 B:360
RGBV CC DRIVER 36W R/G/B/V+ DC24 RGB 500 R: 300 G:720 B:360
NET WEIGHT : 2.8kgs

Water Resistant RGB Water Resistant Signal
Controller Amplifier
