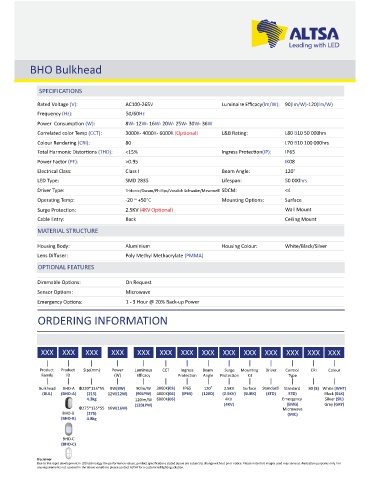

Page 334 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

BHO Bulkhead

SPECIFICATIONS

Rated Voltage (V): AC100-265V Luminaire Efficacy(lm/W): 90(lm/W)-120(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 8W- 12W- 16W- 20W- 25W- 30W- 36W
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): 80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP65
Power Factor (PF): >0.95 IK08
Electrical Class: Class I Beam Angle: 120°
LED Type: SMD 2835 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: <4
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Surface

Surge Protec on: Wall Mount
Cable Entry: Back Ceiling Mount

MATERIAL STRUCTURE

Housing Body: Aluminium Housing Colour: White/Black/Silver
Lens Diffuser: Poly Methyl Methacrylate (PMMA)
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: Microwave
Emergency Op ons: 1 - 3 Hour @ 20% Back-up Power
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (W) Efficacy Protec on Angle Protec on Kit Type

Bulkhead BHO-A Φ220*135*55 8W(8W) 90lm/W 3000K(03) IP65 120° 2.5KV Surface Standard Standard 80 (8) White (WHT)
(BUL) (BHO-A) (215) 12W(12W) (90LPW) 4000K(04) (IP65) (120D) (2.5KV) (SURK) (STD) STD) Black (BLK)
4.3kg 120lm/W 6000K(06) 4KV Emergency Silver (SIL)
(120LPW) (4KV) (EMG) Grey (GRY)
Φ275*135*55 16W(16W) Microwave
BHO-B (275) (MIC)
(BHO-B) 4.8kg

BHO-C
(BHO-C)

Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
