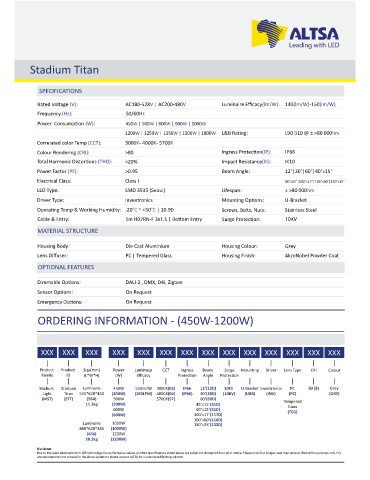

Page 316 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Stadium Titan

SPECIFICATIONS

Rated Voltage (V): AC180-528V | AC200-480V Luminaire Efficacy(lm/W): 140(lm/W)-150(lm/W)
Frequency (Hz): 50/60Hz
Power Consump on (W): 450W | 500W | 600W | 900W | 1000W
1200W | 1250W | 1350W | 1500W | 1800W L&B Ra ng: L90 B10 @ ± >80 000hrs
Correlated color Temp (CCT): 3000K- 4000K- 5700K
Colour Rendering (CRI): >80 Ingress Protec on(IP): IP66
Total Harmonic Distor ons (THD): <20% Impact Resistance(IK): IK10
Power Factor (PF): >0.95 Beam Angle: 12°|30°|60°|40°x15°
Electrical Class: Class I 60°x15°|100°x17°|100°x60°|130°x25°
LED Type: SMD 3535 (Seoul) Lifespan: ± >80 000hrs
Driver Type: Inventronics Moun ng Op ons: U-Bracket
Opera ng Temp & Working Humidity: -20°C ~ +50°C | 10-90 Screws, Bolts, Nuts: Stainless Steel
Cable & Entry: 1m H07RN-F 3x1.5 | Bo om Entry Surge Protec on:

MATERIAL STRUCTURE

Housing Body: Die Cast Aluminium Housing Colour: Grey
Lens Diffuser: PC | Tempered Glass Housing Finish: AkzoNobel Powder Coat
OPTIONAL FEATURES

Dimmable Op ons: DALI-2 , DMX, D4i, Zigbee
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION - (450W-1200W)

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Lens Type CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on

Stadium Stadium Luminaire 450W 150lm/W 3000K(03) IP66 12°(12D) 10KV U-Bracket Inventronics PC 80 (8) Grey
Light Titan 524*628*460 (450W) (150LPW) 4000K(04) (IP66) 30°(30D) (10KV) (UBR) (INV) (PC) (GRY)
(MST) (STT) (564) 500W 5700K(57) 60°(60D) Tempered
11.3kg (500W) 45°x15°(41D) Glass
600W 60°x15°(61D) (TEG)
(600W) 100°x17°(117D)
100°x60°(116D)
Luminaire 1000W 130°x25°(132D)
889*628*345 (1000W)
(654) 1200W
18.2kg (1200W)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
