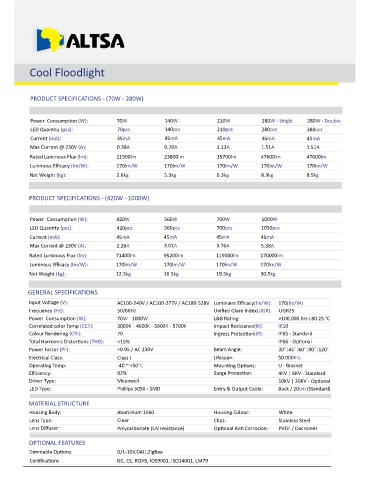

Page 296 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Cool Floodlight

PRODUCT SPECIFICATIONS - (70W - 280W)

Power Consump on (W): 70W 140W 210W 280W - Single 280W - Double
LED Quan ty (pcs): 70pcs 140pcs 210pcs 280pcs 280pcs
Current (mA): 45mA 45mA 45mA 45mA 45mA
Max Current @ 230V (A): 0.38A 0.76A 1.13A 1.51A 1.51A
Rated Luminous Flux (lm): 11900lm 23800lm 35700lm 47600lm 47600lm
Luminous Efficacy (lm/W): 170lm/W 170lm/W 170lm/W 170lm/W 170lm/W
Net Weight (kg): 2.6kg 5.3kg 6.3kg 8.3kg 8.5kg

PRODUCT SPECIFICATIONS - (420W - 1000W)

Power Consump on (W): 420W 560W 700W 1000W
LED Quan ty (pcs): 420pcs 560pcs 700pcs 1050pcs
Current (mA): 45mA 45mA 45mA 45mA
Max Current @ 230V (A): 2.26A 3.01A 3.76A 5.38A
Rated Luminous Flux (lm): 71400lm 95200lm 119000lm 170000lm
Luminous Efficacy (lm/W): 170lm/W 170lm/W 170lm/W 170lm/W
Net Weight (kg): 12.5kg 16.5kg 19.5kg 30.5kg

GENERAL SPECIFICATIONS

Input Voltage (V): AC100-240V / AC100-277V / AC180-528V Luminaire Efficacy(lm/W): 170(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): UGR25
Power Consump on (W): 70W - 1000W L&B Ra ng: >100,000 hrs-L80 25 °C
Correlated color Temp (CCT): 3000K - 4000K - 5000K - 5700K Impact Resistance(IK): IK10
Colour Rendering (CRI): 70 Ingress Protec on(IP): IP65 - Standard
Total Harmonic Distor ons (THD): <15% IP66 - Op onal
Power Factor (PF): >0.95 / AC 230V Beam Angle: 30°|45°|60°|90°|120°
Electrical Class: Class I Lifespan: 50 000hrs
Opera ng Temp: -40 ~ +50°C Moun ng Op ons: U - Bracket
Efficiency: 92% Surge Protec on: 4KV | 6KV - Standard
Driver Type: Meanwell 10KV | 20KV - Op onal
LED Type: Phillips 5050 - SMD Entry & Output Cable: Back / 20cm (Standard)

MATERIAL STRUCTURE
Housing Body: Aluminium 1060 Housing Colour: White
Lens Type: Clear Clips: Stainless Steel
Lens Diffuser: Polycarbonate (UV resistance) Op onal An Corrosion: PVDF / Dacromet
OPTIONAL FEATURES
Dimmable Op ons: 0/1-10V,DALI,ZigBee
Cer fica ons IEC, CE, ROHS, IOS9001, ISO14001, LM79
