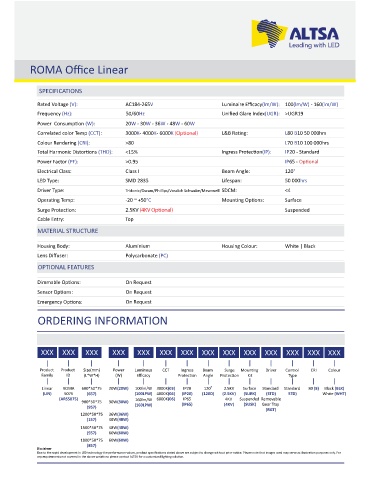

Page 213 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

ROMA Office Linear

SPECIFICATIONS

Rated Voltage (V): AC184-265V Luminaire Efficacy(lm/W): 100(lm/W) - 160(lm/W)
Frequency (Hz): 50/60Hz Unified Glare Index(UGR): >UGR19
Power Consump on (W): 20W - 30W - 36W - 48W - 60W
Correlated color Temp (CCT): 3000K- 4000K- 6000K L&B Ra ng: L80 B10 50 000hrs
Colour Rendering (CRI): >80 L70 B10 100 000hrs
Total Harmonic Distor ons (THD): <15% Ingress Protec on(IP): IP20 - Standard
Power Factor (PF): >0.95 IP65 - Op onal
Electrical Class: Class I Beam Angle: 120°
LED Type: SMD 2835 Lifespan: 50 000hrs
Driver Type: Tridonic/Osram/Phillips/Vossloh Schwabe/Meanwell SDCM: <4
Opera ng Temp: -20 ~ +50°C Moun ng Op ons: Surface

Surge Protec on: Suspended
Cable Entry: Top

MATERIAL STRUCTURE

Housing Body: Aluminium Housing Colour: White | Black
Lens Diffuser: Polycarbonate (PC)
OPTIONAL FEATURES

Dimmable Op ons: On Request
Sensor Op ons: On Request
Emergency Op ons: On Request
ORDERING INFORMATION

XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX

Product Product Size(mm) Power Luminous CCT Ingress Beam Surge Moun ng Driver Control CRI Colour
Family ID (L*W*H) (W) Efficacy Protec on Angle Protec on Kit Type

Linear ROMA 600*50*75 20W(20W) 100lm/W 3000K(03) IP20 120° 2.5KV Surface Standard Standard 80 (8) Black (BLK)
(LIN) 5075 (657) (100LPW) 4000K(04) (IP20) (120D) (2.5KV) (SURK) (STD) STD) White (WHT)
(ARS5075) 160lm/W 6000K(06) IP65 4KV Suspended Removable
900*50*75 30W(30W) (IP65) (4KV) (SUSK) Gear Tray
(957) (160LPW)
(RGT)
1200*50*75 36W(36W)
(157) 48W(48W)
1500*50*75 48W(48W)
(557) 60W(60W)
1800*50*75 60W(60W)
(857)
Disclaimer
Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
