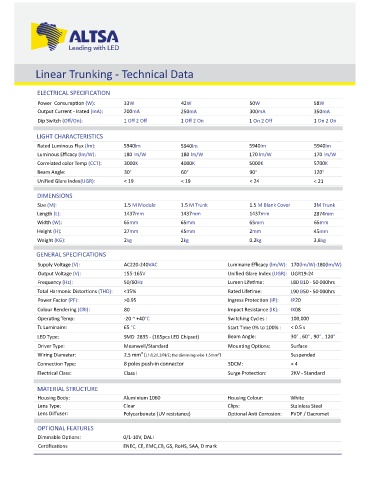

Page 180 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr

Linear Trunking - Technical Data

ELECTRICAL SPECIFICATION
Power Consump on (W): 33W 42W 50W 58W
Output Current - Irated (mA): 200mA 250mA 300mA 350mA
Dip Switch (Off/On): 1 Off 2 Off 1 Off 2 On 1 On 2 Off 1 On 2 On

LIGHT CHARACTERISTICS
Rated Luminous Flux (lm): 5940lm 5940lm 5940lm 5940lm
Luminous Efficacy (lm/W): 180 lm/W 180 lm/W 170 lm/W 170 lm/W
Correlated color Temp (CCT): 3000K 4000K 5000K 5700K
Beam Angle: 30° 60° 90° 120°
Unified Glare Index(UGR): < 19 < 19 < 24 < 21

DIMENSIONS
Size (M): 1.5 M Module 1.5 M Trunk 1.5 M Blank Cover 3M Trunk
Length (L): 1437mm 1437mm 1437mm 2874mm
Width (W): 65mm 65mm 65mm 65mm
Height (H): 27mm 45mm 2mm 45mm
Weight (KG): 2kg 2kg 0.2kg 3.8kg

GENERAL SPECIFICATIONS
Supply Voltage (V): AC220-240VAC Luminaire Efficacy (lm/W): 170(lm/W)-180(lm/W)
Output Voltage (V): 155-165V Unified Glare Index (UGR): UGR19-24
Frequency (Hz): 50/60Hz Lumen Life me: L80 B10 - 50 000hrs
Total Harmonic Distor ons (THD): <15% Rated Life me: L90 B50 - 50 000hrs
Power Factor (PF): >0.95 Ingress Protec on (IP): IP20
Colour Rendering (CRI): 80 Impact Resistance (IK): IK08
Opera ng Temp: -20 ~ +40°C Switching Cycles : 100,000
Tc Luminaire: 65 °C Start Time 0% to 100% : < 0.5 s
LED Type: SMD 2835 - (165pcs LED Chipset) Beam Angle: 30° , 60° , 90° , 120°
Driver Type: Meanwell/Standard Moun ng Op ons: Surface
Wiring Diameter: Suspended
Connec on Type: SDCM: < 4
Electrical Class: Class I Surge Protec on:

MATERIAL STRUCTURE
Housing Body: Aluminium 1060 Housing Colour: White
Lens Type: Clear Clips: Stainless Steel
Lens Diffuser: Polycarbonate (UV resistance) Op onal An Corrosion: PVDF / Dacromet

OPTIONAL FEATURES
Dimmable Op ons: 0/1-10V, DALI
Cer fica ons ENEC, CE, EMC,CB, GS, RoHS, SAA, D mark
