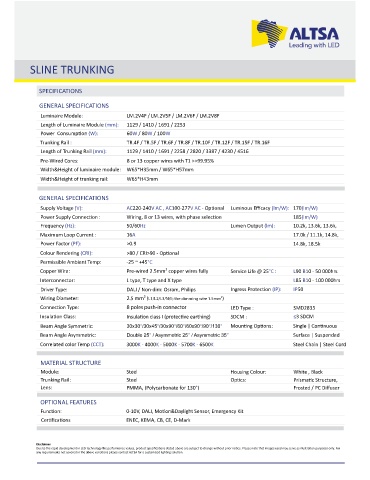

Page 170 - ALTSA 2025 A & B Catalogue - Version 4P Final.cdr
P. 170

SLINE TRUNKING



              SPECIFICATIONS

              GENERAL SPECIFICATIONS
              Luminaire Module:            LM.2V4F / LM.2V5F / LM.2V6F / LM.2V8F
              Length of Luminaire Module (mm):  1129 / 1410 / 1691 / 2253
              Power  Consump on (W):       60W / 80W / 100W
              Trunking Rail :              TR.4F / TR.5F / TR.6F / TR.8F / TR.10F / TR.12F / TR.15F / TR.16F
              Length of Trunking Rail (mm):  1129 / 1410 / 1691 / 2258 / 2820 / 3387 / 4230 / 4516
              Pre-Wired Cores:             8 or 13 copper wires with T1 >>99.95%
              Width&Height of luminaire module:  W65*H35mm / W65*H57mm
              Width&Height of trunking rail:  W65*H43mm


              GENERAL SPECIFICATIONS
              Supply Voltage (V):          AC220-240V AC , AC100-277V AC - Op onal  Luminous Efficacy (lm/W): 170(lm/W)
              Power Supply Connec on :     Wiring, 8 or 13 wires, with phase selec on             185(lm/W)
              Frequency (Hz):              50/60Hz                           Lumen Output (lm):   10.2k, 13.6k, 13.6k,
              Maximum Loop Current :       16A                                                    17.0k / 11.1k, 14.8k,
              Power Factor (PF):           >0.9                                                   14.8k, 18.5k
              Colour Rendering (CRI):      >80 / CRI>90 - Op onal
              Permissible Ambient Temp:    -25 ~ +45°C
              Copper Wire:                 Pre-wired 2.5mm  copper wires fully  Service Life @ 25°C :  L90 B10 - 50 000hrs
              Interconnector:              L type, T type and X type                              L85 B10 - 100 000hrs
              Driver Type:                 DALI / Non-dim: Osram, Philips    Ingress Protec on (IP):  IP50
              Wiring Diameter:
              Connec on Type:                                                LED Type :           SMD2835
              Insula on Class:             Insula on class I (protec ve earthing)  SDCM :         ≤3 SDCM
              Beam Angle Symmetric:        30x30°/30x45°/30x90°/60°/60x90°/90°/130°  Moun ng Op ons:  Single | Con nuous
              Beam Angle Asymmetric:       Double 25° / Asymmetric 25° / Asymmetric 35°           Surface | Suspended
              Correlated color Temp (CCT):  3000K - 4000K - 5000K - 5700K - 6500K                 Steel Chain | Steel Cord


              MATERIAL STRUCTURE
              Module:                      Steel                             Housing Colour:      White , Black
              Trunking Rail:               Steel                             Op cs:               Prisma c Structure,
              Lens:                        PMMA, (Polycarbonate for 130°)                         Frosted / PC Diffuser

              OPTIONAL FEATURES
              Func on:                     0-10V, DALI, Mo on&Daylight Sensor, Emergency Kit
               Cer fica ons                 ENEC, KEMA, CB, CE, D-Mark



             Disclaimer
             Due to the rapid development in LED technology the performance values, product specifica ons stated above are subject to change without prior no ce. Please note that images used may serve as illustra on purposes only. For
             any requirements not covered in the above varia ons please contact ALTSA for a customized ligh ng solu on.
